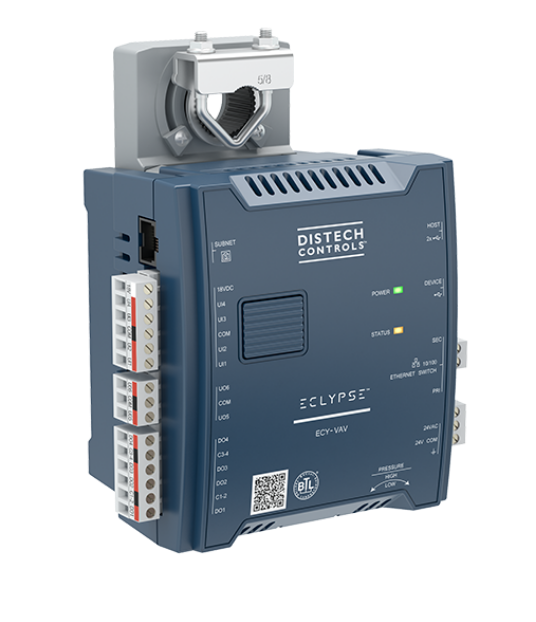

ECLYPSE Connected VAV Controller – ECY-VAV Series

by Distech Controls

Control any variable air volume application out of the box. Also features a model with power over Ethernet.

  • Robust and compact design for your VAV applications
    • 4 universal inputs with high precision 16-bit AD
    • 4 digital outputs (Triac)
    • 2 universal outputs
    • Built-in differential pressure transducer featuring polarity insensitive/polarity-free connection
    • Integrated damper actuator with brushless DC motor
  • Configure pre-loaded applications with embedded ENVYSION or with an Allure™ EC-Smart-Vue communicating sensor, or fully customize with EC-gfxProgram
  • Model with Power over Ethernet - A single cable to provide both data and power, significantly simplifying installation and maintenance, and reducing related costs
  • Integrated fail-safe feature allowing for increased redundancy and reliability in your IP-wired daisy chain: in case of power failure to one controller, communication data is still relayed to the following controller on the daisy-chain
  • Supports Smart Room Control solution, for a unified, end-to-end solution for the control of HVAC, lighting, and shades/sunblind
  • Supports "direct connection" to EC-gfxProgram, graphical programming interface, and mobile apps
  • Available with embedded ENVYSION, web-based graphic design and visualization interface, for hosting of system-based graphics, and visualization of schedules, alarms, and trend logs directly from the controller
  • Daisy-chain up to 4 Allure series communicating sensors via the dedicated subnet port
  • Suggested Replacement Products

  • Spec Sheets Generator

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Specifications

    Brand Distech Controls
    Product Family Room Control Solution
    Subcategory ECLYPSE
    Sales Regions US, OC, ME, EU, CSA, CA, AS
