Award-Winning Smart Room Control Solution

Unified HVAC, lighting and shades/sunblind control

Smart Room Control Solution

SmartRoomControl-Ad2014

Distech Controls’ BACnet/IP connected VAV and PTU controller series feature multiple time and cost savings benefits, increasing productivity by over 25%. Available with pre-loaded, configurable graphics which dynamically adapt to the application configurations selected. This virtually eliminates engineering, including programming and graphics development, and increases efficiency during design, installation and commissioning. These controllers support the Smart Room Control Solution, for unified HVAC, Lighting and shades/sunblind control.

Our extensive line of quality, feature-rich HVAC controllers also includes a selection of terminal-level BACnet® and LONWORKS® options for VAVs, fan coil units, chilled beams and heat pump units.

Our HVAC controllers are based on a robust common hardware platform and share the same programming and productivity enhancing toolset, providing increased efficiency and options for system design, installation, service, and maintenance.



    Mosaic1

    Unified Solution for Increased ROI

    The Smart Room Control Solution delivers energy savings in excess of 30% on HVAC and 60% on lighting, resulting in the lowest total cost of ownership via unified control with only one product configured.

    Lowest Total Cost of Ownership

    • Only one product configured
    • Simplifies design, reduces installation time and costs, improves maintenance and serviceability, and increases reliability of multi-application integration

    Energy Savings Delivered

    • Using unified occupancy-based control strategies, daylight harvesting based on light level sensing and natural light optimization
    • The automation of shades/sunblind increases the insulation factor of windows

    Innovative ECO-Vue™ Leaf Pattern

    • Available on the Allure EC-Smart-Vue and my PERSONIFY mobile app
    • Graphically indicates energy consumption in real-time and encourages occupants’ energy-conscious behavior.
    Mosaic2

    Personalized Comfort

    The Smart Room Control solution delivers improved Indoor Environmental Quality for a comfortable building and increased occupant welfare, satisfaction and productivity.

    • Occupants can adjust temperature, lighting and shades/sunblind settings using the room device of their choice
    • This variety of available room devices and the convenience of a mobile app addresses the requirements of LEED® Credit 6.2: Controllability of Systems—Thermal Comfort
    • Eliminates the need for multiple devices by streamlining temperature, lighting, and shades/sunblind control
    • The automation of shades/sunblind based on indoor and outdoor light levels allows occupants to benefit from increased natural light, while avoiding harsh glare and direct heat from the sun when present

    Choose from the Allure EC-Smart-Vue communicating sensor, to the EC-Remote and my PERSONIFY mobile app

    Montage---SRC---Oct-2015

    Ease of Installation and Configuration

    Expansion modules can connect to the extended HVAC controller on a sub-network.

    One sensor delivers occupancy status, light level, and temperature readings.

    Control:

    • up to 8
    • Light loads up to 8 shades/sunblind motors or motor groups

    And support:

    • Up to 4 EC-Multi-Sensor and 4 Allure communicating sensors
    NewProd-News

    Proudly Featured In

    Want to gain a more in-depth understanding of the benefits of Smart Room Control? Be sure to read one of the following articles put together by the Distech Controls team:

    Download Our Smart Room Control Brochure
    Learn how you can achieve personalized comfort and increased ROI with Distech Controls' Smart Room Control solution.

    DOWNLOAD

    An Award Winning Product

    The Smart Room Control solution has been recognized by industry leading associations.

    HVR-logo_web

    2015 HVR Sustainable Product of the Year

     Named Sustainable Product of the Year, as part of the HVR Awards 2015, which highlights companies that have identified new environmentally-friendly products and successfully brought them to market.

    AHRAward-2014-60x60

    2014 AHR Expo Innovation Honorable Mention

    Selected by a panel of judges made up of ASHRAE members, as an AHR Innovation Award honorable mention in the Building Automation category.

    MoneySavingAward2014-60x60

    2014 Money-Saving Product by BUILDINGS Magazine

    Selected by BUILDINGS Magazine as a 2014 Money-Saving Product winner. This annual competition highlights budget-friendly offerings that make life easier for facilities managers.

    CSEAward2014-60x60

    2014 Consulting Specifying Engineer Product of the Year Finalist

    A 2014 finalist for the Consulting-Specifying Engineer Product of the Year awards program.

    HVAC Control

    Choose ECB series BACnet controllers, ECL series LonWorks controllers, or ECY ECLYPSE Connected BACnet/IP and Wi-Fi controllers for terminal equipment applications with built-in features and logic for lighting and shades/sunblind control. Control up to 8 lights and 8 shades/sunblinds with the expansion modules.

    • Products and Models

      • VAV 2

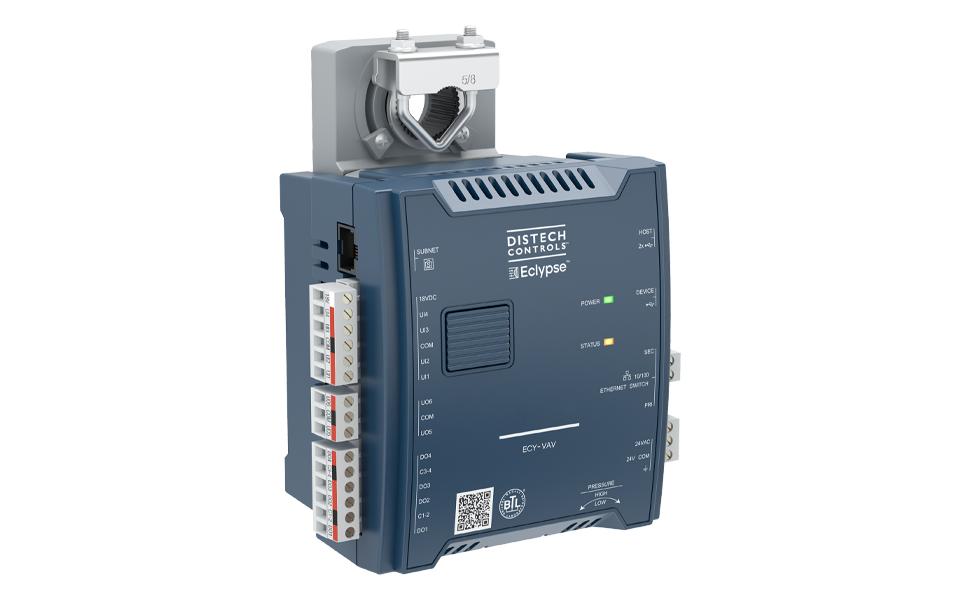

        ECLYPSE Connected VAV Controller – ECY-VAV Series

        Control any variable air volume application out of the box. Also features a model with power over Ethernet.

        VIEW DETAILS

      • ECY-PTU

        ECLYPSE Connected Terminal Unit Controller - ECY-PTU/TU Series

        Designed to control terminal units such as fan coils, chilled beams, heat pumps, and radiant/reversible ceilings.

        VIEW DETAILS

      • Adapter

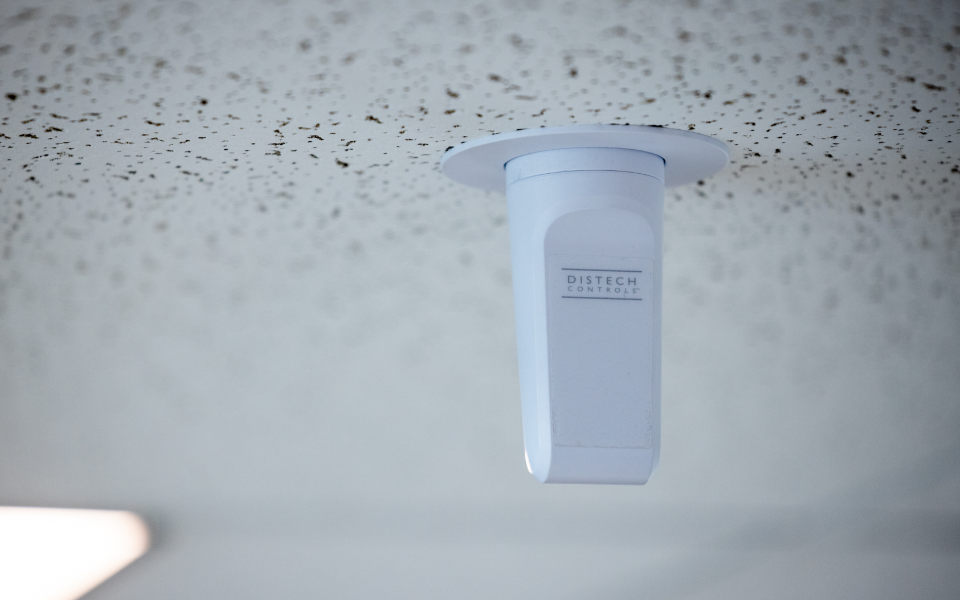

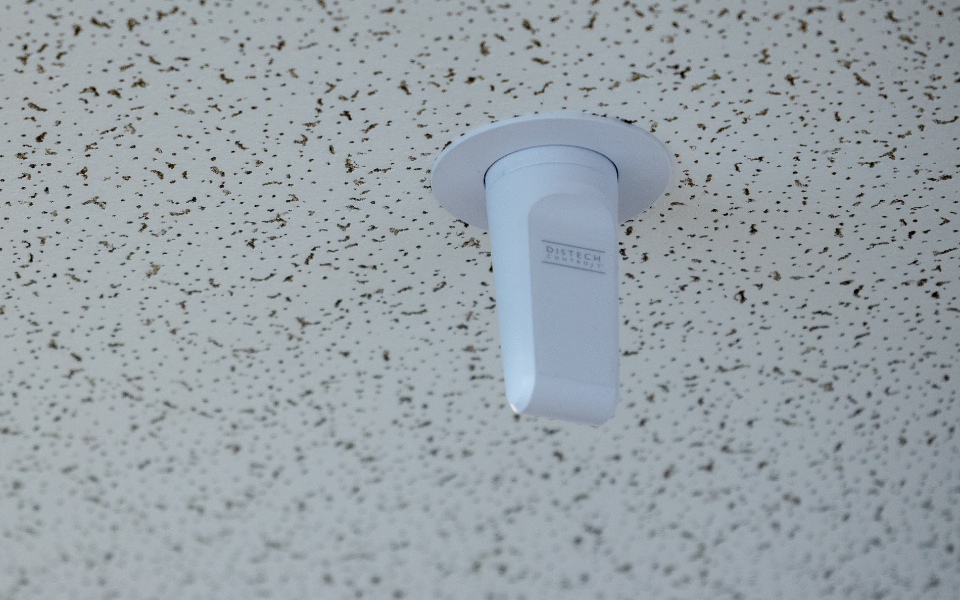

        ECLYPSE Wi-Fi Adapter

        The ECLYPSE Wi-Fi Adapter enables wireless connectivity options for ECLYPSE controllers, including Wi-Fi client, access point, and hotspot.

        VIEW DETAILS

    BACnet® HVAC Controllers

    • Products and Models

      • ECB-103

        ECB-103

        For two pipe fan coil, chilled ceiling, heat pump, and unit ventilator applications

        VIEW DETAILS

      • ECB-VAVN

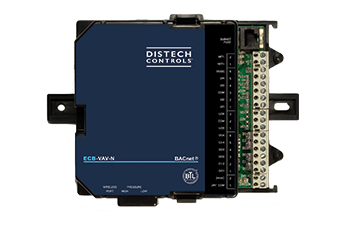

        ECB-VAV-N

        For applications with large damper VAV boxes or existing damper actuators

        VIEW DETAILS

      • ECB-VAVS_FRONT_16AUG2016

        ECB-VAVS

        9-point controller ideally suited for cooling only and cooling with reheat VAV applications

        VIEW DETAILS

      • ECB-PTU-308

        ECB-PTU Series

        For fan coil, chilled ceiling/beam and heat pump applications

        VIEW DETAILS

    LONWORKS® HVAC Controllers

    • Products and Models

      • ECL-103

        ECL-103

        Programmable Controllers

        VIEW DETAILS

      • ECL-VAV-N

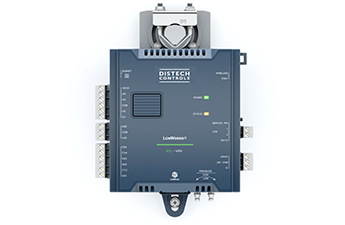

        ECL-VAV-N

        For applications with large damper VAV boxes or existing damper actuators

        VIEW DETAILS

      • ECL-VAVS_FRONT_16AUG2016

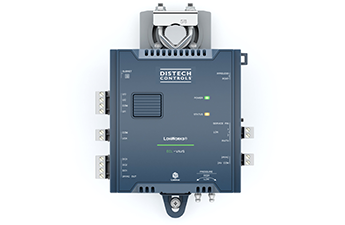

        ECL-VAVS

        9-point controller ideally suited for cooling only and cooling with reheat VAV applications

        VIEW DETAILS

      • ECL-PTU-207_New1

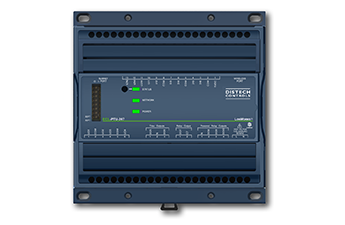

        ECL-PTU Series

        For fan coil, chilled ceiling/beam and heat pump applications

        VIEW DETAILS

     Sunblind Control

    ECx-Blind expansion module to control Shades/Sunblind: up/down, tilting and angle rotation.
    Suitable for various applications: venetian blinds, sun shades, and façade blinds.

    • Products and Models

      • ECx-Blind-4-WD-ST

        ECx-Blind Series

        The ECx-Blind Series Expansion Modules are microprocessor-based interfaces that extend the number of inputs and outputs provided by the ECL/ECB-PTU Series controllers as well as ECY/ECL/ECB-VAV controllers.

        VIEW DETAILS

     Lighting Control

    ECx-Light expansion modules to control lights - ON/OFF or dimming. Enables the automated control of lighting based on natural light levels and occupancy.

    • Products and Models

      • ECx-Light-4-STP

        ECx-Light Series

        The ECx-Light Expansion Modules are microprocessor-based interfaces that extend the number of inputs and outputs provided by the ECL/ECB-PTU Series controllers as well as ECY/ECL/ECB-VAV controllers.

        VIEW DETAILS

      • ECx-Light-4DALI-WD

        ECx-Light-4DALI

        The ECx-Light-4DALI Expansion Modules are microprocessor-based interfaces that extend the number of inputs and outputs provided by the ECL/ECB-PTU Series controllers as well as ECY/ECL/ECB-VAV controllers.

        VIEW DETAILS

    Occupancy Detection

    Optimize your building’s energy use according to real-time conditions.

    • Products and Models

      • EC-Multi-Sensor-BLE_Final

        EC-Multi-Sensor-BLE

        The EC-Multi-Sensor-BLE is a compact, "4-in-1" communicating device. With just one wire and one connection, this device effectively combines (1) a motion detector, (2) a light sensor, (3) a temperature sensor, and (4) a Bluetooth® low energy technology transceiver for the wireless control of comfort from a mobile phone.

        VIEW DETAILS

      • Multisensor

        EC-Multi-Sensor Series

        The EC-Multi-Sensor Series combines a motion detector, a light sensor, a temperature sensor, and an infrared receiver in a single compact device.

        VIEW DETAILS

    Personalized Comfort

    Occupants can adjust temperature, lighting and shade/sunblind settings in the room to achieve a level of personalized comfort

    • Products and Models

      • TCND

        EC-Remote Series

        The EC-Remote Series remote controls allow users to remotely manage all the comfort parameters of a room: lighting, shades/sunblinds, temperature, fan speed and occupancy.

        VIEW DETAILS

      • Unitouch_F

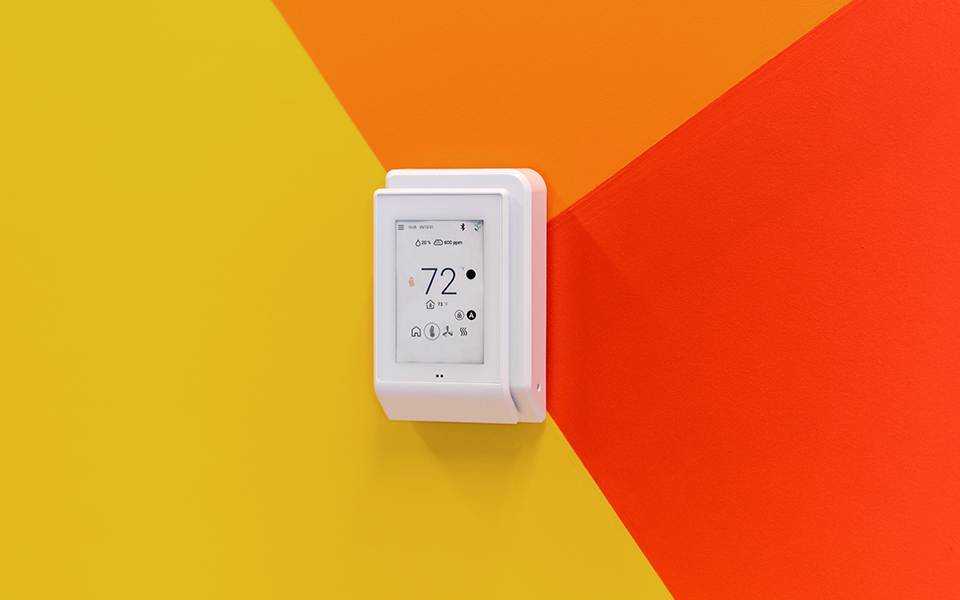

        Allure UNITOUCH™

        This cutting-edge touchscreen sensor enhances occupant experience with its inviting user interface and modernises the BMS room device portfolio with its contemporary design.

        The Allure UNITOUCH can be used for a wide range of HVAC, lighting, and sunblind applications, making it an ideal all-in-one addition to Distech Controls’ Smart Room Control solution. Its 3.5”, high-resolution capacitive touchscreen is easy to view and simple to use, allowing for the control of these applications using a single device. Furthermore, this communicating sensor allows for the wireless control of comfort from a mobile phone by using Bluetooth® low energy technology.

        This product series includes different models, with a choice in sensing capabilities (temperature, humidity, CO2) and colour (black, white).

        VIEW DETAILS

      • Allure_EC-Smart-VueC

        Allure EC-Smart-Vue

        Advanced communicating sensor with four integrated sensors: Temperature, humidity, CO2 and motion. Features innovative ECO-Vue™ leaf pattern.

        VIEW DETAILS

      • ECS_TSOF_PERS_L

        Allure EC-Smart-Comfort

        Occupant-focused, communicating room sensor, providing precise temperature sensing, and optional lighting and shade/sunblind control, for an all-in-one room device. Recipient of the 2016 AHR Innovation Awards’ honorable mention in the Indoor Air Quality category.

        VIEW DETAILS

    my PERSONIFY Mobile App

    Welcome to my PERSONIFY, the app that allows you to easily customize your comfort settings directly from your mobile device through its intuitive interface.

    The my PERSONIFY app uses Bluetooth® technology and is compatible with Distech Controls’ BLE-Enabled Enhanced Occupant Experience product line: Allure UNITOUCH and EC-Multi-Sensor-BLE.

    • Products and Models

      • myPersonify-App

        my PERSONIFY Mobile App

        Welcome to my PERSONIFY, the app that allows you to easily customize your comfort settings directly from your mobile device through its intuitive interface.

        The my PERSONIFY app uses Bluetooth® technology and is compatible with Distech Controls’ BLE-Enabled Enhanced Occupant Experience product line: Allure UNITOUCH and EC-Multi-Sensor-BLE.

        VIEW DETAILS
