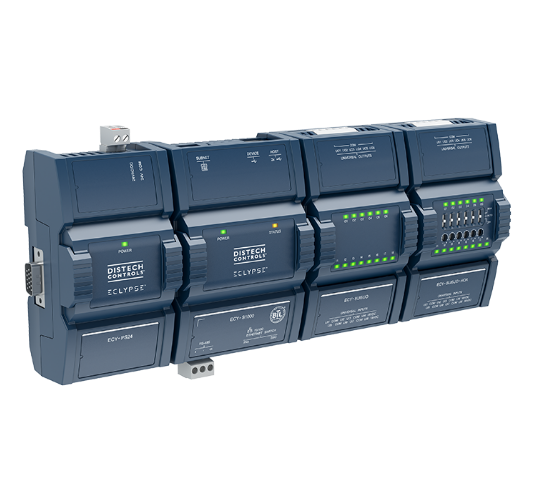

ECLYPSE Connected System Controller - ECY-CSC Series

by Distech Controls

Ideal for central plant and mechanical equipment control, it is modular and scalable, to effectively address any HVAC application, up to 320 points.

  • Customize your ECLYPSE Connected System Controller, by selecting from:
    • 2 power supplies
    • 3 control, automation and connectivity servers
    • 12 I/O modules - can be combined together for up to 20 modules and 320 points
    • Module with additional RS-485 ports (for up to a total of 3) to enable the concurrent support and integration of BACnet MS/TP and Modbus RTU devices
  • M-Bus Module that will support the integration of M-Bus devices
  • In daisy-chain wired IP, supports STP loop-free topology configuration
  • Proven high-performance and power efficient single core-processor, providing scalable speed (above 1GHZ) for accelerated reading and control of points, and enhanced trending capabilities
  • Enables BACnet MS/TP to IP routing and Modbus RTU integration
    • Cost effectively connect meters, VFDs and other Modbus devices without additional gateways
    • Route BACnet MS/TP devices to BACnet/IP
  • Daisy-chain up to 12 Allure™ series communicating sensors via the dedicated subnet port
  • Supports Smart Room Control solution, for a unified, end-to-end solution for the control of HVAC, lighting, and shades/sunblind
  • "Direct connection" to EC-gfxProgram, graphical programming interface, and mobile apps
  • Available with embedded ENVYSION, web-based graphic design and visualization interface, for hosting of system-based graphics, and visualization of schedules, alarms, and trend logs directly from the controller
  • Auto-addressing eliminates the need to manually assign an address to each I/O module reducing installation and configuration time
  • All modules are plug & play devices, equipped with HD-15 connectors transmitting power and commu-nications, for fast and easy as¬sembly
  • Hot-swappable tool-less design and unique latching mechanism
