ECL-600 and ECx-400 Series

by Distech Controls

For AHU, chiller, boiler, cooling tower, and central plant applications

  • 16 universal inputs including 4 for fast pulse counting and metering applications
  • Expandable I/O capabilities with up to 2 ECx modules for a total of 40 inputs and 36 outputs
  • Optional HOA switch with potentiometer to locally override and monitor overridden outputs
  • 15 VDC power supply to power 4-20mA transducers
  • 2 calendar, 8 schedule, and 30 loop (PID)
  • Internal alarm functionality

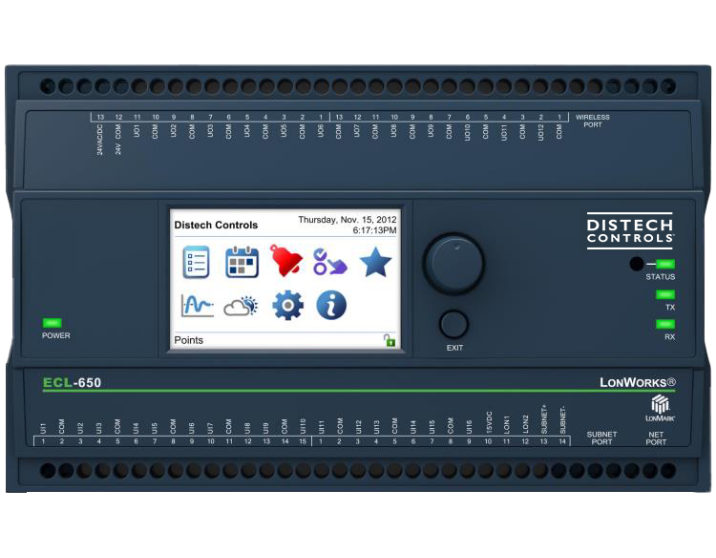

  • ECL-650 includes live graphics color display (integrated LCD operator interface)
  • Supports up to 12 Allure series communicating sensors
  • Open-to-Wireless™: support of up to 28 wireless battery-less inputs
  • LonMark® certified
  • ECL 600 and ECL 650 (AHU) LonMark® certified controllers designed to meet oil and gas industry standards
  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet ECL-600 and ECx-400 Series Spec Sheet LONMARK certified 28-Point programmable controllers 6/13/2019 View
  • Specifications

    Brand Distech Controls
    Product Type System and Equipment Control Solution
    Subcategory LonWorks
    Sales Regions US, OC, ME, EU, CSA, CA, AS
