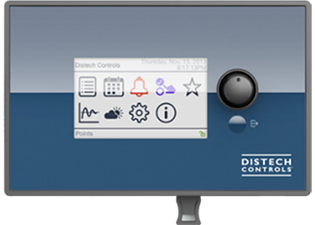

ECx-Display
Streamlined mechanical room display for your ECB series BACnet® controllers, ECL series LonWorks® controllers, and ECY series ECLYPSE Connected BACnet/IP and Wi-Fi controllers. Managers and technicians will benefit from this powerful, user-friendly color backlit LCD display, providing convenient access to important system data in real time.
- Preloaded with a visual interface:
- View, edit, and override values and configure schedule and calendar
- View Tune PID loops with system response graphing
- View and acknowledge alarms
- Set up a list of favorites to rapidly access commonly-used values
- Perform diagnostics and take corrective actions such as overriding a sensor, pump, fan, or changing a setpoint
- Test and commission HVAC systems singlehandedly
- Simplified installation:
- Can be DIN rail or panel mounted, or used as a handheld device for servicing
- Connects directly to controllers using a dedicated subnet port
- Option of connecting Allure EC-Smart-Vue and ECx-Display to the same controller with the ECx-Subnet-Adapter
- Easy-to-use, rugged design:
- Convenient jog-dial offers quick and easy navigation
- With an IP-54 Rating, the ECx-Display is dust and splash resistant
- Black enclosure offered with your choice of a blue or black LEXAN™ face
-
Suggested Replacement Products
-
Spec Sheets
Document Type Document Title Description Updated View {{document.DocumentType}} {{document.DocumentTitle}} {{document.DocumentStatusText}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
-
Specifications
Brand Distech Controls Product Family Displays Subcategory Ecx-Display Sales Regions US, OC, ME, EU, CSA, CA, AS
-
